View Issue Details Jump to Notes ] Issue History ] Print ]
IDProjectCategoryView StatusDate SubmittedLast Update
0000958VCMISound, music, videospublic2012-05-16 08:232014-05-30 17:41
Reporterdouggie_m
Assigned ToIvan
PrioritynormalSeverityminorReproducibilityalways
StatusclosedResolutionfixed
PlatformPowerPC (Big Endian)OSGNU/LinuxOS VersionDebian Sid
Product Version0.88
Target VersionFixed in Version0.89
Summary0000958: Wrong colors in some places on map and inside town screen
DescriptionI built VCMI 0.88 release tarball, extracted the required .lod files and etc. from WoG 3.58f distribution, and:
1. Good news - it works!
2. Bug - it shows wrong colors in some places.

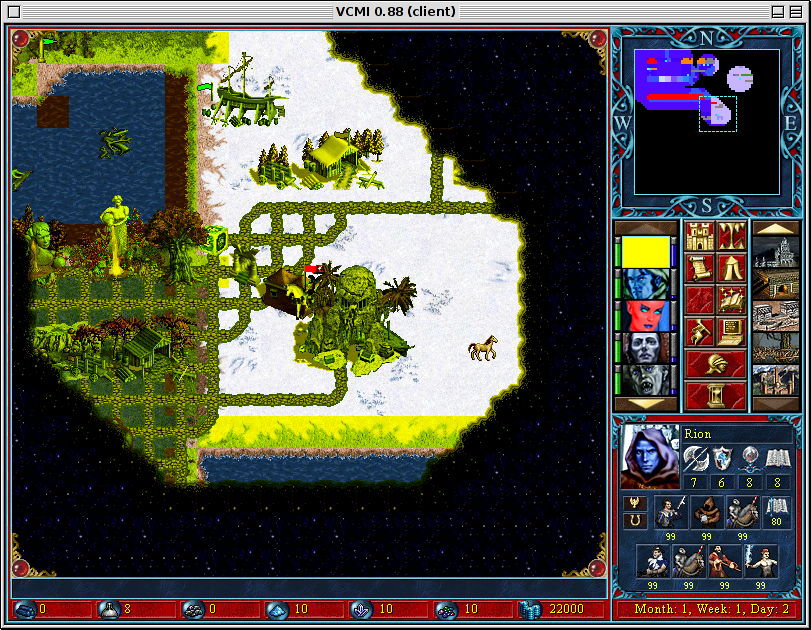

Screenshot is attached.
Steps To ReproduceJust start any map, and you'll see it.
I suppose it is endianess bug, i.e. you may not see it on x86 (endian little architecture).
TagsNo tags attached.
Attached Filespng file icon Screenshot - 05162012 - 03:55:10 AM.png [^] (602,045 bytes) 2012-05-16 08:23


png file icon Screenshot - 05162012 - 04:32:46 AM.png [^] (1,313,869 bytes) 2012-05-16 08:42
png file icon Screenshot - 05162012 - 10:55:00 AM.png [^] (566,759 bytes) 2012-05-16 15:03


png file icon Screenshot - 05162012 - 12:09:17 PM.png [^] (1,004,074 bytes) 2012-05-16 16:17


png file icon Screenshot - 05162012 - 03:44:29 PM.png [^] (1,014,023 bytes) 2012-05-16 19:49


png file icon Screenshot - 05162012 - 03:57:26 PM.png [^] (535,715 bytes) 2012-05-16 19:59


png file icon Screenshot - 05162012 - 04:36:22 PM.png [^] (1,022,548 bytes) 2012-05-16 20:38


patch file icon endianless_patch.patch [^] (4,546 bytes) 2012-05-16 21:18 [Show Content]
patch file icon endianless_patch_corrected.patch [^] (33,615 bytes) 2012-05-16 21:29 [Show Content]
png file icon Screenshot - 05162012 - 05:49:19 PM.png [^] (1,648,970 bytes) 2012-05-16 21:51
png file icon Screenshot - 05172012 - 03:35:32 PM.png [^] (1,325,600 bytes) 2012-05-17 19:38
patch file icon endian-minimap.patch [^] (4,364 bytes) 2012-05-17 22:48 [Show Content]
png file icon Screenshot - 05182012 - 05:15:18 AM.png [^] (31,139 bytes) 2012-05-18 09:17


png file icon Screenshot - 05212012 - 12:30:10 PM.png [^] (1,355,805 bytes) 2012-05-21 16:33
png file icon Screenshot - 05222012 - 01:02:36 PM.png [^] (1,658,304 bytes) 2012-05-22 17:09
png file icon Screenshot - 05252012 - 03:03:15 PM.png [^] (1,679,065 bytes) 2012-05-25 19:11

- Relationships

-  Notes
(0002445)
douggie_m (reporter)
2012-05-16 08:34

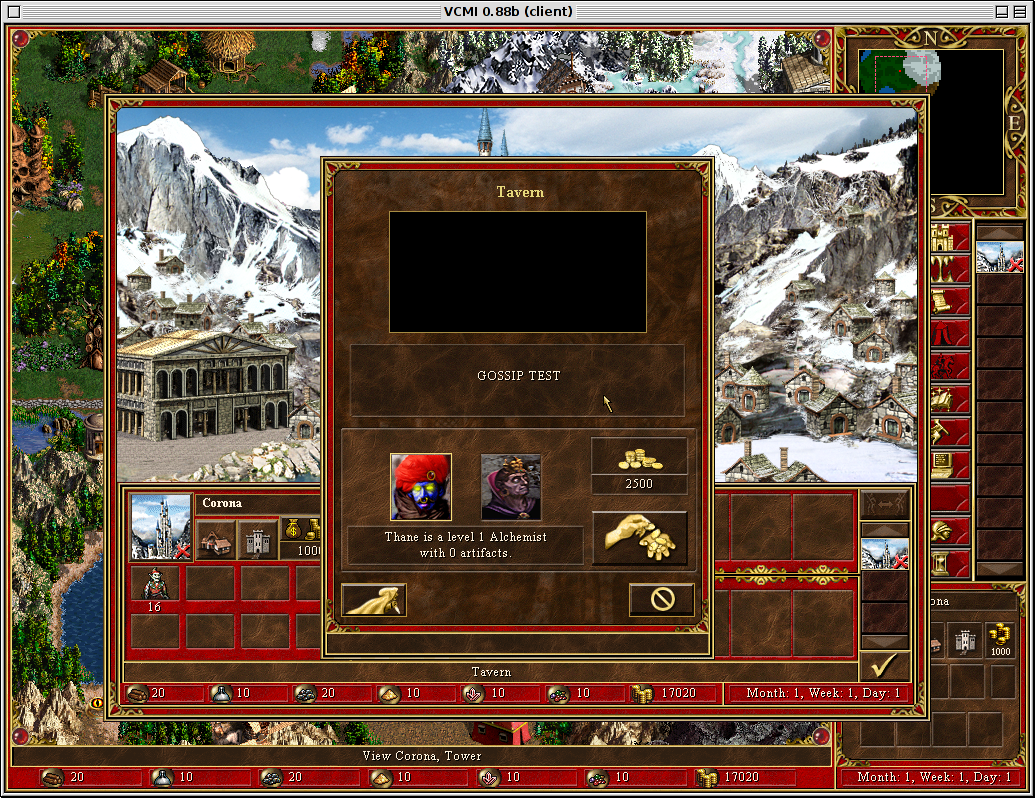

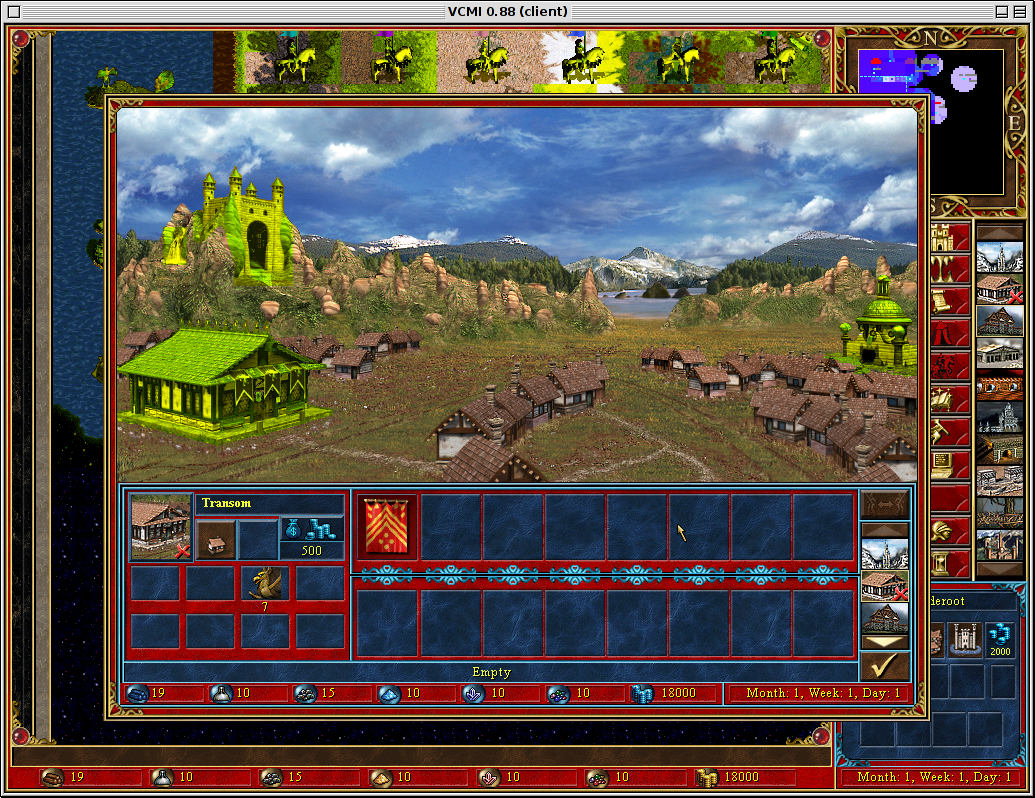

Attaching another screenshot (showing the town screen).
(0002447)
Ivan (developer)
2012-05-16 12:15
edited on: 2012-05-16 12:36

Looks like endianess bug indeed. Will check.

This is not required but will be helpful. Can you compile VCMI using latest sources from SVN? It won't fix bug right now but I have no other way to check how my fix will work.

(0002449)
douggie_m (reporter)
2012-05-16 13:23
edited on: 2012-05-16 14:06

> Can you compile VCMI using latest sources from SVN?
Why not. I tried (current) revision 2682 and this issue is still present.

(0002450)
douggie_m (reporter)
2012-05-16 14:59

I did commented out the following in client/CbitmapHandler.cpp:84

#if 0 /* (SDL_BYTEORDER == SDL_BIG_ENDIAN) */
                        tp.b = pcx[it++];
                        tp.g = pcx[it++];
                        tp.r = pcx[it++];
#else
                        tp.r = pcx[it++];
                        tp.g = pcx[it++];
                        tp.b = pcx[it++];
#endif

and some parts started to be painted correctly (like chosen hero's portrait, bottom resources line, in-game message dialogs, etc.). Screenshot will follow.
(0002451)
Ivan (developer)
2012-05-16 15:06
edited on: 2012-05-16 15:07

Yup. Found that one too - it should fix all blue-ness.

Yellow-ness most possibly is coming from client/SDL_Extensions:
Here we have several ColorPutter::putColor methods.
Problem is: color with RGB = 222, 243, 255 (Font that supposed to be white) after blitting turns into RGB = 243, 255, 0 (First component missing)

And there is one more separate issue - minimap.

(0002452)
douggie_m (reporter)
2012-05-16 15:15

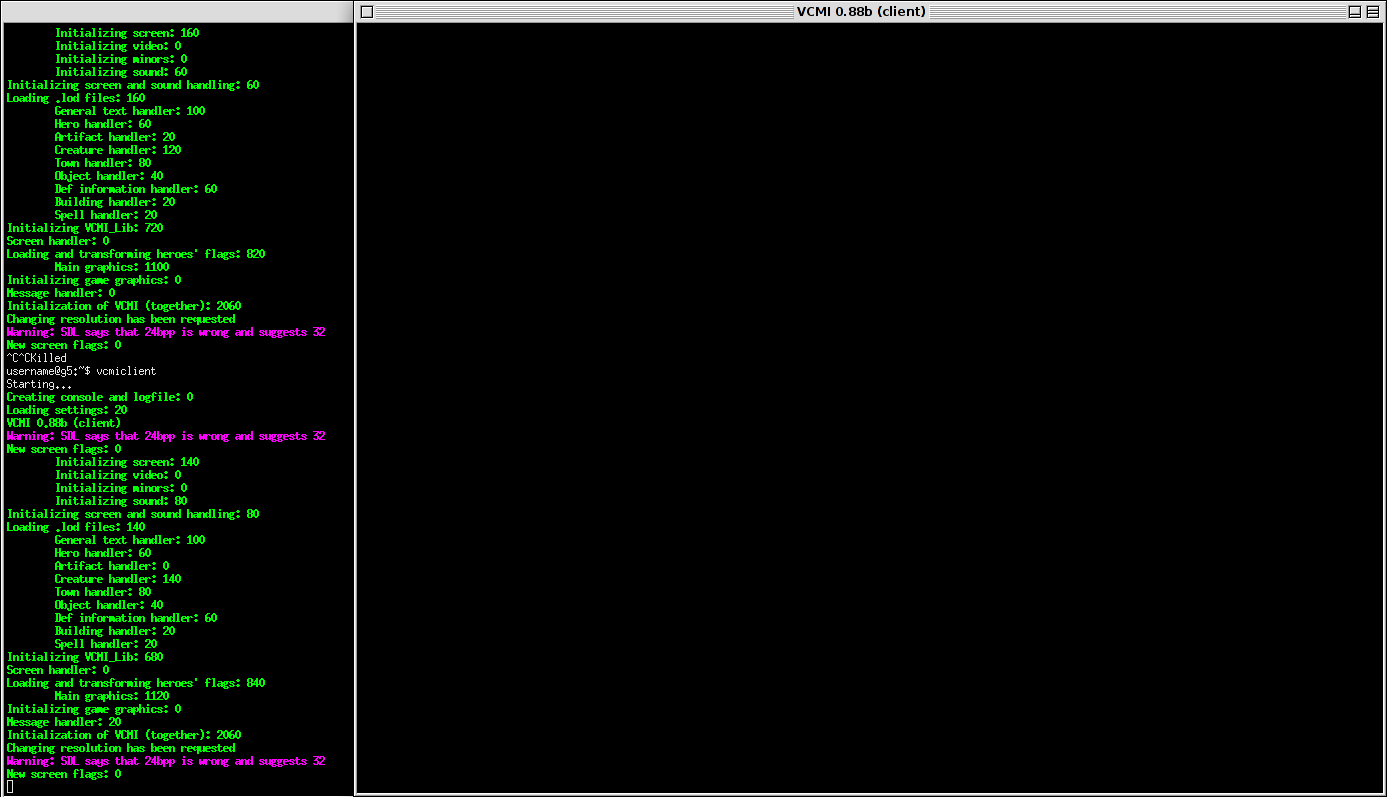

Well, SDL says:
> Warning: SDL says that 24bpp is wrong and suggests 32

That zero comes from alpha (or "unused"), I suppose.
(0002453)
Ivan (developer)
2012-05-16 15:23

It means that there is mismatch between X color resolution and in-game one. Shouldn't affect game in any way.
If you wish to remove that warning open file ~/.vcmi/config/settings.json and add this line in "video" section:
"bitsPerPixel" : 32,

Ok. Bug is in ColorPutter::PutColor method in SDL_Extensions.h:238
Now looking for a way to fix...
(0002454)
douggie_m (reporter)
2012-05-16 15:34
edited on: 2012-05-16 15:51

I'm testing with

        else if(incrementPtr == -1)
        {
                ptr -= 4;
                ptr[0] = B;
                ptr[1] = G;
                ptr[2] = R;
                if (bpp == 4) ptr[3] = 0;

No, this was a bad idea ;)

This variant:

                if (bpp == 4) {
                        ptr -= 4;
                        ptr[0] = B;
                        ptr[1] = G;
                        ptr[2] = R;
                        ptr[3] = 0;
                } else {
                        ptr -= 3;
                        ptr[0] = B;
                        ptr[1] = G;
                        ptr[2] = R;
                }

Does produce the same result as original.

(0002455)
Ivan (developer)
2012-05-16 15:49
edited on: 2012-05-16 16:01

Try replacing that method with this code:
{
    Uint8 *ptr2 = ptr;
    if(incrementPtr == 0)
    {
        if(bpp == 4)
            *ptr2++ = 0;

        ptr2[0] = R;
        ptr2[1] = G;
        ptr2[2] = B;
    }
    else if(incrementPtr == 1)
    {
        if(bpp == 4)
            *ptr2++ = 0;

        *ptr2++ = R;
        *ptr2++ = G;
        *ptr2++ = B;
        ptr = ptr2;
    }
    else if(incrementPtr == -1)
    {
        *(--ptr2) = B;
        *(--ptr2) = G;
        *(--ptr2) = R;

        if(bpp == 4)
            *(--ptr2) = 0;
        ptr = ptr2;
    }
    else
    {
        assert(0);
    }
}

(0002456)
douggie_m (reporter)
2012-05-16 15:53
edited on: 2012-05-16 15:59

> First byte is unused\alpha ... After this - 3 RGB bytes

That means that the color format is ARGB and not RGBA?

> Try replacing that method with this code

Okay, trying it now.

By the way, shouldn't we restore `ptr' back after incrementing it?

(0002457)
Ivan (developer)
2012-05-16 15:58
edited on: 2012-05-16 16:02

Looks to be so. That's the only way I found to get such image

Note: I've edited above code. Previous version could crash.

Yes. ptr should be restored if increment != 0. My bad.

(0002458)
douggie_m (reporter)
2012-05-16 16:02
edited on: 2012-05-16 16:05

Your new version doesn't increment/decrement for +1/-1 cases.

I'm trying previous one with

    if(incrementPtr == 0)
    {
        if(bpp == 4)
            *ptr++ = 0;

        ptr[0] = R;
        ptr[1] = G;
        ptr[2] = B;

        if(bpp == 4)
            ptr--;
    }

UPD: You fixed it one more time ;) These edits make me crazy.

(0002459)
douggie_m (reporter)
2012-05-16 16:10

Very nice.

Now yep, minimap left.
(0002460)
Ivan (developer)
2012-05-16 16:34

Sorry. Will try less edits next time :)

It seems that in all cases (map, shadows, button frame) blue component is incorrect. Looking into this issues right now.
(0002461)
Ivan (developer)
2012-05-16 16:44

Ok. Previous two methods: lines 207 and 229
1) Add at start:
Uint8 * ptr2 = ptr;
if (bpp == 4)
    ptr2++;

2) Replace all access to ptr as array to ptr2:
ptr[0] -> ptr2[0]
ptr[1] -> ptr2[1]
ptr[1] -> ptr2[2]

No need to update ptr after this.

This should fix at least some issues.

When everything will be fixed I'll make better patch that will work on both little and big-endian systems.
(0002462)
douggie_m (reporter)
2012-05-16 16:48

> It seems that in all cases (map, shadows, button frame) blue component is incorrect. Looking into this issues right now.

On the last screenshot map and shadows look nice for me. Button frame is little emo-ish, yeah.

By the way, can you upload screenshot to see how it *should* look like?
(0002463)
Ivan (developer)
2012-05-16 17:00

By "map" I meant "minimap"

http://forum.vcmi.eu/album.php [^] - VCMI screenshots, some may be outdated
http://dl.dropbox.com/u/22372764/vcmi/vcmi-current.png [^] - my screenshot of this map
(0002464)
Ivan (developer)
2012-05-16 17:22
edited on: 2012-05-16 17:31

This is what I have right now:
4 modified ColorPutter methods, lines 205-285:

Sorry. Missed few ptr2's

http://pastebin.com/9j1WJfUt [^]

(0002465)
douggie_m (reporter)
2012-05-16 19:27
edited on: 2012-05-16 19:35

> error: ‘Uint’ was not declared in this scope
(I changed them to Uint8)

And please, use `diff -u' next time to easily feed that to `patch'.

UPD: I used your patch, but minimap is still the same.

(0002466)
douggie_m (reporter)
2012-05-16 19:48
edited on: 2012-05-16 20:12

Look what I've found, CAdvmapInterface.cpp:

--- client/CAdvmapInterface.cpp.orig 2012-05-16 15:36:39.248625059 -0400
+++ client/CAdvmapInterface.cpp 2012-05-16 15:42:35.787735261 -0400
@@ -77,16 +77,16 @@
                vinya.first = m["terrain_id"].Float();

                const JsonVector &unblocked_vec = m["unblocked"].Vector();
- vinya.second.r = unblocked_vec[0].Float();
- vinya.second.g = unblocked_vec[1].Float();
- vinya.second.b = unblocked_vec[2].Float();
+ vinya.second.r = 255; //unblocked_vec[2].Float();
+ vinya.second.g = 255; //unblocked_vec[1].Float();
+ vinya.second.b = 255; //unblocked_vec[0].Float();
                vinya.second.unused = 255;
                colors.insert(vinya);

                const JsonVector &blocked_vec = m["blocked"].Vector();
- vinya.second.r = blocked_vec[0].Float();
- vinya.second.g = blocked_vec[1].Float();
- vinya.second.b = blocked_vec[2].Float();
+ vinya.second.r = 255; //blocked_vec[2].Float();
+ vinya.second.g = 255; //blocked_vec[1].Float();
+ vinya.second.b = 255; //blocked_vec[0].Float();
                vinya.second.unused = 255;
                colorsBlocked.insert(vinya);
        }

I first tried to swap rgb <-> bgr, but this gave me no better results. But setting them to 0xFF makes minimap be white, except castles, heroes, and emo ;) border. Maybe this can help. Screenshot follows.

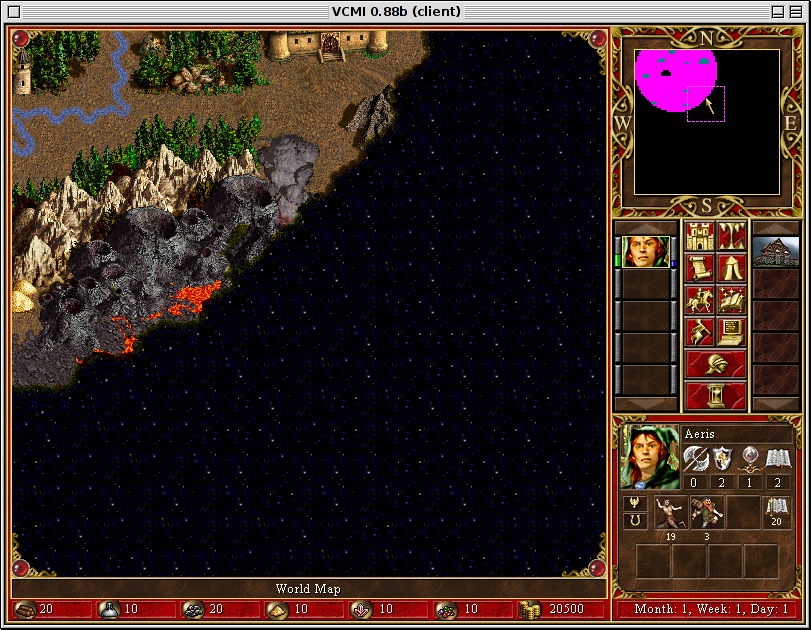

UPD: `vinya.second.r = 255; vinya.second.g = 0; vinya.second.b = 0;' makes minimap the same emo magenta as the border (and *not red*).
UPD2: green=255, r,b=0 gives cyan color; blue=255, r,g=0 gives... no, not yellow, but clean blue! r,g,b=0 gives the same blue too.

Note: magenta is R=FF, G=0, B=FF; cyan is R=0, G=FF, B=FF.

(0002467)
Ivan (developer)
2012-05-16 20:14

Looks to be same problem as yellowness. Will try to make sense of it later - it's quite late here.

Tomorrow I'll finish "endian-friendly" patch and will re-check every place with direct access to images. If I won't miss anything then all you'll need to do is to re-check subpixels order.

One question - have you set bits per pixel in config to 32? Or you're using default value (24)?
(0002468)
douggie_m (reporter)
2012-05-16 20:21

> have you set bits per pixel in config to 32? Or you're using default value (24)?
I'm following the rule "Warnings can be ignored" ;) So I haven't change anything.
(0002469)
douggie_m (reporter)
2012-05-16 20:30

I found how it is drawn, it is "SDL_PutPixelWithoutRefresh", part of the same "SDL Extensions":

void CSDL_Ext::SDL_PutPixelWithoutRefresh(SDL_Surface *ekran, const int & x, const int & y, const Uint8 & R, const Uint8 & G, const Ui$
{
        Uint8 *p = getPxPtr(ekran, x, y);
        getPutterFor(ekran, false)(p, R, G, B);

        //needed?
        if(ekran->format->BytesPerPixel==4)
                p[3] = A;
}
(0002470)
douggie_m (reporter)
2012-05-16 20:36
edited on: 2012-05-16 20:53

Bingo! It is "not needed" actually. Just commenting out

if(ekran->format->BytesPerPixel==4)
                p[3] = A;

gave me cool minimap!

UPD: By the way, I know why other SDL-games are blueish now ;) They do use these SDL_Extensions, which seems to be popular. Is there devs for them? If so, these changes shall be reported to them.

(0002471)
douggie_m (reporter)
2012-05-16 21:17
edited on: 2012-05-16 21:52

Attaching patch against current SVN (2684).

UPD: oops

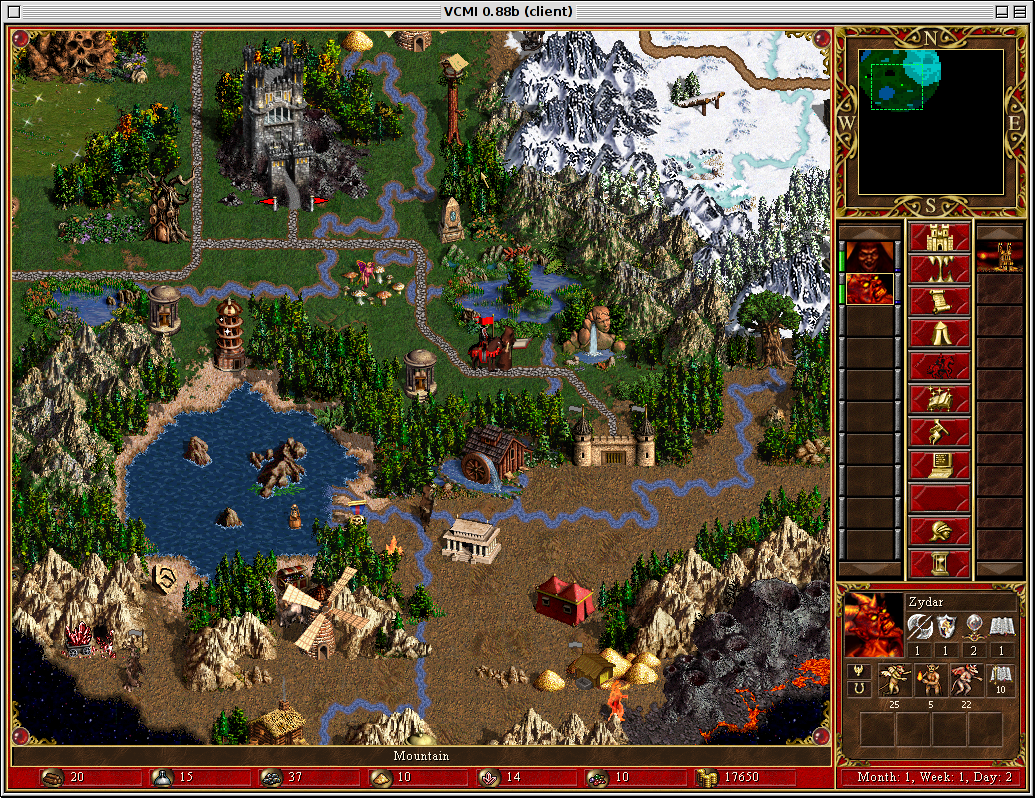

UPD2: attached screenshot with the game built with endianless_patch_corrected.patch applied to fresh svn; game is 100% playable now

Great work! Thanks, Ivan.

(0002473)
douggie_m (reporter)
2012-05-16 22:20
edited on: 2012-05-17 21:19

OOPS, I started to actually play a game, but... It does segfault on each battle! Is this known issue? Shall be reported separately?

--------------------------------
Warning: empty path found...
Segmentation fault
Server finished
Lost connection to server, ending listening thread!
read: End of file
Something wrong, lost connection while game is still ongoing...
terminate called after throwing an instance of 'boost::exception_detail::clone_impl<boost::exception_detail::error_info_injector<boost::system::system_error> >'
  what(): read: End of file
Aborted
--------------------------------

GDB gives me:

--------------------------------
Program received signal SIGABRT, Aborted.
[Switching to Thread 0xec50b450 (LWP 12163)]
0x0de9098c in *__GI_raise (sig=6) at ../nptl/sysdeps/unix/sysv/linux/raise.c:64
64 ../nptl/sysdeps/unix/sysv/linux/raise.c: No such file or directory.
(gdb) bt
#0 0x0de9098c in *__GI_raise (sig=6) at ../nptl/sysdeps/unix/sysv/linux/raise.c:64
#1 0x0de96040 in *__GI_abort () at abort.c:92
0000002 0x0e16a9d0 in __gnu_cxx::__verbose_terminate_handler() () from /usr/lib/powerpc-linux-gnu/libstdc++.so.6
0000003 0x0e1679e8 in ?? () from /usr/lib/powerpc-linux-gnu/libstdc++.so.6
0000004 0x0e167a2c in std::terminate() () from /usr/lib/powerpc-linux-gnu/libstdc++.so.6
0000005 0x0e167ed8 in __cxa_rethrow () from /usr/lib/powerpc-linux-gnu/libstdc++.so.6
0000006 0x1035319c in CClient::run (this=0x1119d0f0) at Client.cpp:162
0000007 0x10448c30 in boost::_mfi::mf0<void, CClient>::operator() (this=0x111a3574, p=0x1119d0f0)
    at /usr/include/boost/bind/mem_fn_template.hpp:49
0000008 0x10448a38 in boost::_bi::list1<boost::_bi::value<CClient*> >::operator()<boost::_mfi::mf0<void, CClient>, boost::_bi::list0> (
    this=0x111a357c, f=..., a=...) at /usr/include/boost/bind/bind.hpp:253
0000009 0x104488d8 in boost::_bi::bind_t<void, boost::_mfi::mf0<void, CClient>, boost::_bi::list1<boost::_bi::value<CClient*> > >::operator() (this=0x111a3574) at /usr/include/boost/bind/bind_template.hpp:20
0000010 0x10447cfc in boost::detail::thread_data<boost::_bi::bind_t<void, boost::_mfi::mf0<void, CClient>, boost::_bi::list1<boost::_bi::value<CClient*> > > >::run (this=0x111a3470) at /usr/include/boost/thread/detail/thread.hpp:62
0000011 0x0e49c40c in ?? () from /usr/lib/libboost_thread.so.1.49.0
0000012 0x0de247b0 in start_thread (arg=<optimized out>) at pthread_create.c:306
0000013 0x0df4ab10 in clone () at ../sysdeps/unix/sysv/linux/powerpc/powerpc32/clone.S:123
--------------------------------

UPD: it does actually look like bug in either GLibC or Boost.
UPD2: to double-recheck, I built fresh svn^W 0.88 release w/o this patche, ignoring colors issue; and I was able to play battles.

(0002474)
Ivan (developer)
2012-05-17 10:48

I'm back.

SDL_Extension is part of VCMI but I suppose most of SDL-based projects have similar code. SDL itself provides only basic functionality.

You patch won't work as it because it will mess up on little-endian systems.
I've applied all your fixes in endian-independent way - update to rev 2685. It should work without any glitches and without any additional patches.

Some areas to re-check:

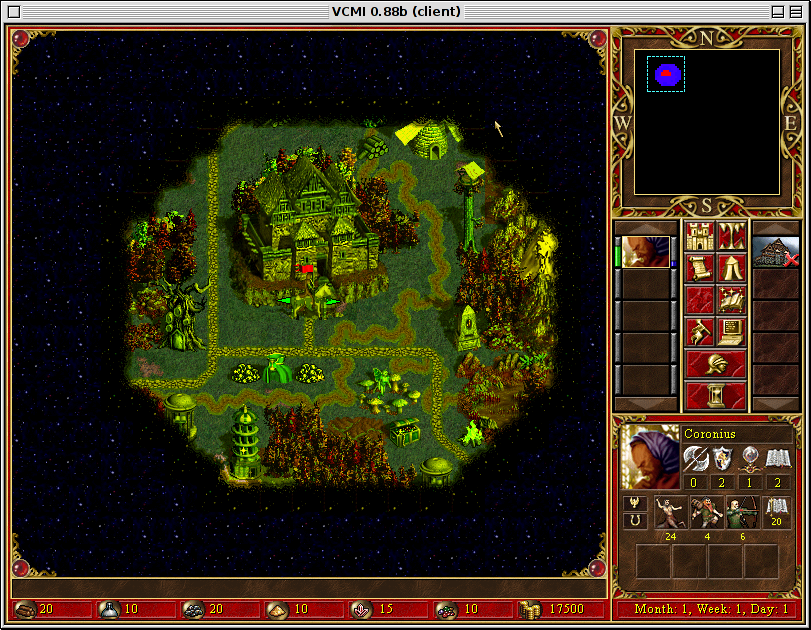

- shadows. They should be gray, not green as on your screenshots
- puzzle map. Find some obelisks on map - opened areas should look like old photo (sepia effect): http://forum.vcmi.eu/album_pic.php?pic_id=39 [^]
- battles.
- town and town fort windows.
(0002478)
douggie_m (reporter)
2012-05-17 19:08
edited on: 2012-05-18 08:51

> I've applied all your fixes in endian-independent way - update to rev 2685. It should work without any glitches and without any additional patches.
Great! I checked out and is ready to build fresh revision 2686.

Hang about a half of hour for the test report ;)

> - shadows. They should be gray, not green as on your screenshots
--They are green.
++Shadows are gray now. Neutral-owned stuff on minimap is still green with r2686.
UPD: By the way, owned-by-player minimap's stuff is black, not red (as on your screenshots).

> - puzzle map
Looks fine. See screenshot.

> - battles
Crash.
terminate called after throwing an instance of 'boost::exception_detail::clone_impl<boost::exception_detail::error_info_injector<boost::system::system_error> >'

> - town and town fort windows.
They are all fine.

(0002479)
douggie_m (reporter)
2012-05-17 20:22

> SDL_Extension is part of VCMI but I suppose most of SDL-based projects have similar code. SDL itself provides only basic functionality.

Ah, okay. At least, I know where to start to dig [spoiler]for the Grail[/spoiler] ;)
(0002480)
Ivan (developer)
2012-05-17 20:50

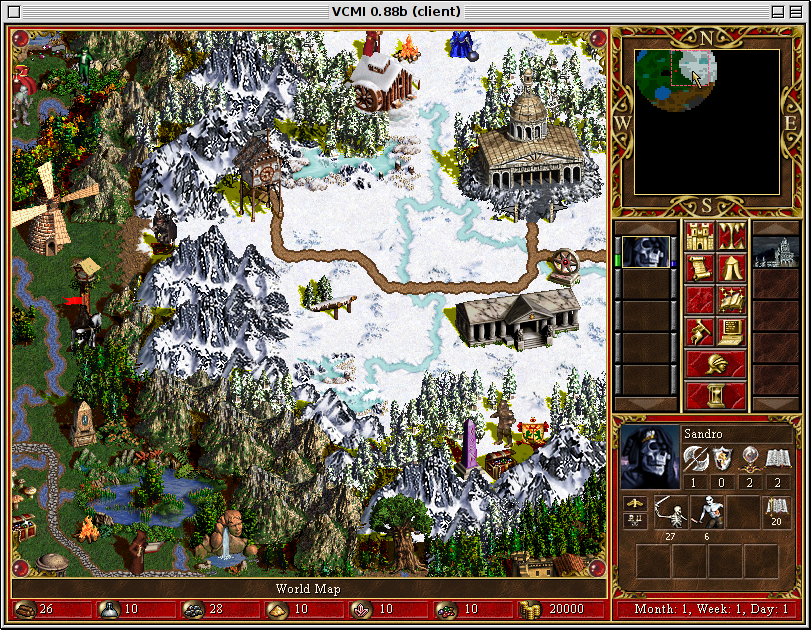

Nice! Screenshot looks fine - even shadows on snow are gray as they should.
Not sure what's wrong with minimap. Will check.

Regarding crash - this looks like crash on server.
Before starting a battle attach debugger to vcmiserver process. This should show real location of the crash - system_error/ End of file usually means that client lost connection with server.
(0002481)
douggie_m (reporter)
2012-05-17 21:19

Regarding crash on battle - the last working one I tried was 0.88 tarball actually, not svn.
I can try git-svn and then git bisect.
(0002482)
Ivan (developer)
2012-05-17 21:35

git bisect may help. Or may not - some of our commits are quite large. Stacktrace from server should be more easier to check.

And I think I fixed minimap issue. Will commit fix a bit later.
(0002483)
douggie_m (reporter)
2012-05-17 21:52

> Stacktrace from server should be more easier to check.

Okay, you convicted me to spend some time with gdb ;)
(0002484)
douggie_m (reporter)
2012-05-17 21:57
edited on: 2012-05-17 22:00

> I think I fixed minimap issue. Will commit fix a bit later.

Can you post the patch here, just to test it before you apply it to upstream?..

(0002485)
Ivan (developer)
2012-05-17 22:48

Patch uploaded. I've cut it from my own changes but it should be complete.
(0002486)
douggie_m (reporter)
2012-05-18 09:03
edited on: 2012-05-18 09:05

This does definitely look like another bug, not "minor" and not "sound, music, video":

----------------------------------------
$ ps -A | grep vcmiserver
 2309 pts/4 00:00:01 vcmiserver
...
(gdb) attach 2309
...
(gdb) c
...
Program received signal SIGSEGV, Segmentation fault.
[Switching to Thread 0xf6eff450 (LWP 2500)]
0x0f7fdc48 in BattleInfo::setupBattle (tile=..., terrain=3, terType=11,
    armies=0x104285b8, heroes=0x104285c0, creatureBank=false, town=0x0)
    at BattleState.cpp:1753
1753 creatureBank ? commanderBank[i] : commanderField[i]);
(gdb) bt
#0 0x0f7fdc48 in BattleInfo::setupBattle (tile=..., terrain=3, terType=11,
    armies=0x104285b8, heroes=0x104285c0, creatureBank=false, town=0x0)
    at BattleState.cpp:1753
#1 0x0f90fc90 in CGameState::setupBattle (this=0x10840e80, tile=...,
    armies=0x104285b8, heroes=0x104285c0, creatureBank=false, town=0x0)
    at CGameState.cpp:787
0000002 0x10172a50 in CGameHandler::setupBattle (this=0x108408e0, tile=...,
    armies=0x104285b8, heroes=0x104285c0, creatureBank=false, town=0x0)
    at CGameHandler.cpp:1464
0000003 0x101697a4 in CGameHandler::startBattle(CArmedInstance const**, int3, CGHeroInstance const**, bool, boost::function<void (BattleResult*)>, CGTownInstance const*) (this=0x108408e0, armies=0x104285b8, tile=...,
    heroes=0x104285c0, creatureBank=false, cb=..., town=0x0)
    at CGameHandler.cpp:372
0000004 0x10295774 in boost::_mfi::mf6<void, CGameHandler, CArmedInstance const**, int3, CGHeroInstance const**, bool, boost::function<void (BattleResult*)>, CGTownInstance const*>::operator()(CGameHandler*, CArmedInstance const**, int3, CGHeroInstance const**, bool, boost::function<void (BattleResult*)>, CGTownInstance const*) const (this=0x10958bd4, p=0x108408e0, a1=0x104285b8,
    a2=..., a3=0x104285c0, a4=false, a5=..., a6=0x0)
    at /usr/include/boost/bind/mem_fn_template.hpp:732
0000005 0x10295334 in boost::_bi::list7<boost::_bi::value<CGameHandler*>, boost::_bi::value<CArmedInstance const**>, boost::_bi::value<int3>, boost::_bi::value<CGHeroInstance const**>, boost::_bi::value<bool>, boost::_bi::value<boost::function<void (BattleResult*)> >, boost::_bi::value<CGTownInstance const*> >::operator()<boost::_mfi::mf6<void, CGameHandler, CArmedInstance const**, int3, CGHeroInstance const**, bool, boost::function<void (BattleResult*)>, CGTownInstance const*>, boost::_bi::list0>(boost::_bi::type<void>, boost::_mfi::mf6<void, CGameHandler, CArmedInstance const**, int3, CGHeroInstance const**, bool, boost::function<void (BattleResult*)>, CGTownInstance const*>&, boost::_bi::list0&, int) (this=0x10958bdc, f=..., a=...)
    at /usr/include/boost/bind/bind.hpp:670
0000006 0x10295144 in boost::_bi::bind_t<void, boost::_mfi::mf6<void, CGameHandler, CArmedInstance const**, int3, CGHeroInstance const**, bool, boost::function<void (BattleResult*)>, CGTownInstance const*>, boost::_bi::list7<boost::_bi::value<CGameHandler*>, boost::_bi::value<CArmedInstance const**>, boost::_bi::value<int3>, boost::_bi::value<CGHeroInstance const**>, boost::_bi::value<bool>, boost::_bi::value<boost::function<void (BattleResult*)> >, boost::_bi::value<CGTownInstance const*> > >::operator()() (this=0x10958bd4)
    at /usr/include/boost/bind/bind_template.hpp:20
0000007 0x10292858 in boost::detail::thread_data<boost::_bi::bind_t<void, boost::_mfi::mf6<void, CGameHandler, CArmedInstance const**, int3, CGHeroInstance const**, bool, boost::function<void (BattleResult*)>, CGTownInstance const*>, boost::_bi::list7<boost::_bi::value<CGameHandler*>, boost::_bi::value<CArmedInstance const**>, boost::_bi::value<int3>, boost::_bi::value<CGHeroInstance const**>, boost::_bi::value<bool>, boost::_bi::value<boost::function<void (BattleResult*)> >, boost::_bi::value<CGTownInstance const*> > > >::run() (
    this=0x10958ad0) at /usr/include/boost/thread/detail/thread.hpp:62
0000008 0x0f25d40c in ?? () from /usr/lib/libboost_thread.so.1.49.0
0000009 0x0f21c7b0 in start_thread (arg=<optimized out>) at pthread_create.c:306
0000010 0x0ed3fb10 in clone ()
    at ../sysdeps/unix/sysv/linux/powerpc/powerpc32/clone.S:123

(0002488)
douggie_m (reporter)
2012-05-18 10:15

Oops, I suffered Debian Sid power to break everything:

----------------------------------------
Cannot establish connection! Retrying within 2 seconds
Establishing connection...
Found endpoints:
        0: 127.0.0.1:3030
Trying connection to 127.0.0.1:3030 (0)
Problem with connecting:
system:101
Something went wrong... checking for error info
system:101
----------------------------------------
$ ping 127.0.0.1
connect: Network is unreachable
----------------------------------------

So, please, ignore the deleted comment and the last screenshot.
Writing from OS X now (by the way, where's VCMI for OS X? ;)
I dunno how and when I'll fix this no-networking-at-all issue.
(0002489)
Ivan (developer)
2012-05-18 10:29

VCMI for OS X? We don't have anybody with this OS but as far as I know it works. You need to compile it yourself though.
One note - you'll need at least gcc-4.5. clang or earlier gcc versions won't work

Looks like commanders issue. That also explains why it as not present in 0.88. Open new issue in Battles/Mechanics if you wish
(0002490)
Ivan (developer)
2012-05-18 10:55

Ok. I think i found it. You need to update configuration files:
copy them (or create symlink) - files in
/usr/local/share/vcmi/config
should be the same as in
/path/to/source/config
(0002491)
douggie_m (reporter)
2012-05-18 11:13
edited on: 2012-05-18 11:23

> Ok. I think i found it. You need to update configuration files
If this is about vcmiserver's issue, I've already open a separate issue.
http://bugs.vcmi.eu/view.php?id=960 [^]

(0002493)
Ivan (developer)
2012-05-18 17:37

Moving to resolved - minimap was fixed in rev 2688.
(0002515)
douggie_m (reporter)
2012-05-21 16:29
edited on: 2012-05-22 17:06

-- I do confirm the fix.
++ I confirmed the fix when I applied endian-minimap.patch to r2684. Fresh SVN (r2704) now shows greenish minimap, no magenta border now :(
Screenshot will follow.

(0002522)
douggie_m (reporter)
2012-05-22 17:07

I confirmed the fix when I applied endian-minimap.patch to r2684. Fresh SVN (r2704) now shows greenish minimap.
(0002525)
Ivan (developer)
2012-05-22 17:26

I won't have time for VCMI for several days but I'll check what went wrong here as soon as I can.
(0002526)
douggie_m (reporter)
2012-05-22 17:42
edited on: 2012-05-22 17:43

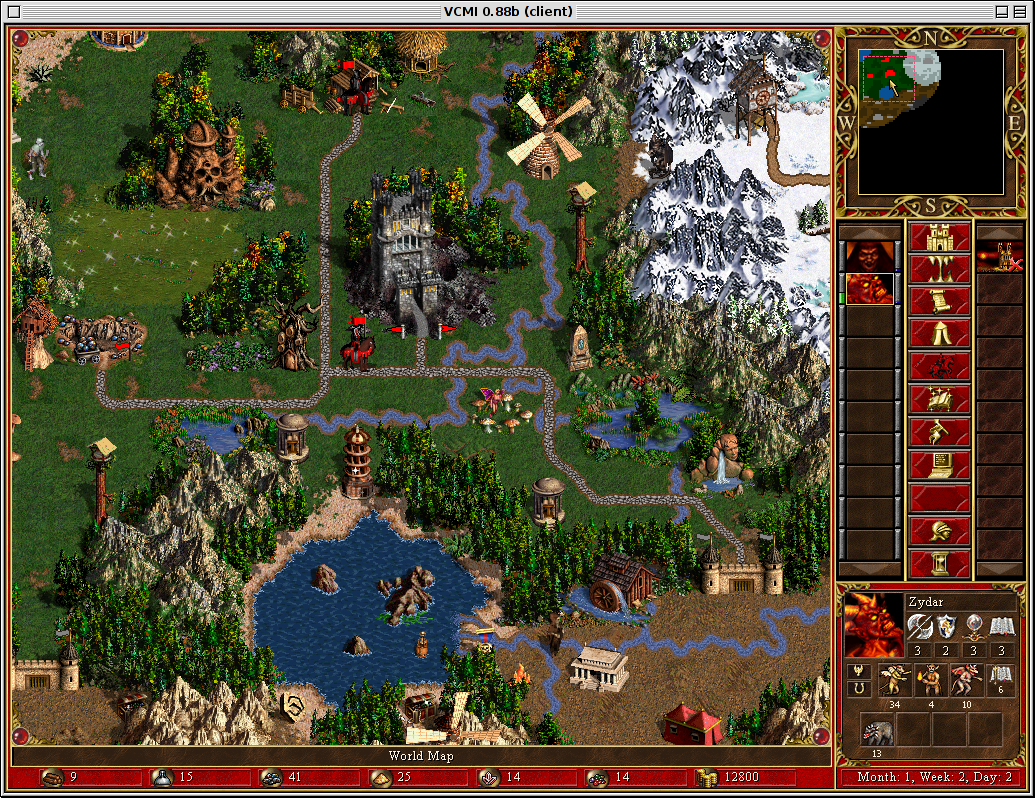

By the way, if you'll look on Screenshot - 05212012 - 12:30:10 PM.png (it was a result of applying endian-minimap.patch to r2684), you'll not see colored towns and mines on minmap. In current SVN (r2704) they are visible, but the whole minimap is colored wrong, and it is in another "direction" (not blueish, but greenish).

(0002550)
Ivan (developer)
2012-05-25 11:58

For some reason red channel was set to zero.
Check rev. 2709 - not sure what's causing the glitch so this is mostly guessing "what may be wrong".
(0002552)
majaczek (reporter)
2012-05-25 12:57

24bit color putter was accessed apparently to put unused/alfa field (I read the cod but I don't remember where it actually appear). That means it owerwrite next pixel first color - you need not to use alpha/unused channel in any non-32-bit color putter (maybe use static_assert() to make sure it is never used where "it doesn't exist" ?)
(0002560)
douggie_m (reporter)
2012-05-25 19:11

Well. It. Is. Okay.

You. did. It. Great.

RESOLVED FIXED

P.S. Apparently, the next release version shall be numbered 1.0 or at least 0.9 (but not 0.89).
(0002561)
Ivan (developer)
2012-05-25 19:44

So it looks that I'm good with guessing.
Moving to resolved.

But why next version should be not 0.89?
(0002562)
douggie_m (reporter)
2012-05-25 19:47

> why next version should be not 0.89?

Well, you did great work. That's why.

Also, these commanders. By the way, will be any option to turn these "WoG" extensions off maybe? To not to get commanders on battle, for example.

- Issue History
Date Modified Username Field Change
2012-05-16 08:23 douggie_m New Issue
2012-05-16 08:23 douggie_m File Added: Screenshot - 05162012 - 03:55:10 AM.png
2012-05-16 08:34 douggie_m Note Added: 0002445
2012-05-16 08:42 douggie_m File Added: Screenshot - 05162012 - 04:32:46 AM.png
2012-05-16 12:15 Ivan Note Added: 0002447
2012-05-16 12:15 Ivan Assigned To => Ivan
2012-05-16 12:15 Ivan Status new => assigned
2012-05-16 12:36 Ivan Note Edited: 0002447 View Revisions
2012-05-16 13:23 douggie_m Note Added: 0002449
2012-05-16 13:49 douggie_m Note Edited: 0002449 View Revisions
2012-05-16 14:06 douggie_m Note Edited: 0002449 View Revisions
2012-05-16 14:59 douggie_m Note Added: 0002450
2012-05-16 15:03 douggie_m File Added: Screenshot - 05162012 - 10:55:00 AM.png
2012-05-16 15:06 Ivan Note Added: 0002451
2012-05-16 15:07 Ivan Note Edited: 0002451 View Revisions
2012-05-16 15:15 douggie_m Note Added: 0002452
2012-05-16 15:23 Ivan Note Added: 0002453
2012-05-16 15:34 douggie_m Note Added: 0002454
2012-05-16 15:40 douggie_m Note Edited: 0002454 View Revisions
2012-05-16 15:49 Ivan Note Added: 0002455
2012-05-16 15:51 douggie_m Note Edited: 0002454 View Revisions
2012-05-16 15:51 Ivan Note Edited: 0002455 View Revisions
2012-05-16 15:53 douggie_m Note Added: 0002456
2012-05-16 15:54 douggie_m Note Edited: 0002456 View Revisions
2012-05-16 15:56 Ivan Note Edited: 0002455 View Revisions
2012-05-16 15:58 Ivan Note Added: 0002457
2012-05-16 15:59 douggie_m Note Edited: 0002456 View Revisions
2012-05-16 16:01 Ivan Note Edited: 0002455 View Revisions
2012-05-16 16:02 Ivan Note Edited: 0002457 View Revisions
2012-05-16 16:02 douggie_m Note Added: 0002458
2012-05-16 16:02 douggie_m Note Edited: 0002458 View Revisions
2012-05-16 16:05 douggie_m Note Edited: 0002458 View Revisions
2012-05-16 16:10 douggie_m Note Added: 0002459
2012-05-16 16:17 douggie_m File Added: Screenshot - 05162012 - 12:09:17 PM.png
2012-05-16 16:34 Ivan Note Added: 0002460
2012-05-16 16:44 Ivan Note Added: 0002461
2012-05-16 16:48 douggie_m Note Added: 0002462
2012-05-16 17:00 Ivan Note Added: 0002463
2012-05-16 17:22 Ivan Note Added: 0002464
2012-05-16 17:31 Ivan Note Edited: 0002464 View Revisions
2012-05-16 19:27 douggie_m Note Added: 0002465
2012-05-16 19:28 douggie_m Note Edited: 0002465 View Revisions
2012-05-16 19:35 douggie_m Note Edited: 0002465 View Revisions
2012-05-16 19:48 douggie_m Note Added: 0002466
2012-05-16 19:49 douggie_m File Added: Screenshot - 05162012 - 03:44:29 PM.png
2012-05-16 19:56 douggie_m Note Edited: 0002466 View Revisions
2012-05-16 19:59 douggie_m File Added: Screenshot - 05162012 - 03:57:26 PM.png
2012-05-16 20:04 douggie_m Note Edited: 0002466 View Revisions
2012-05-16 20:06 douggie_m Note Edited: 0002466 View Revisions
2012-05-16 20:07 douggie_m Note Edited: 0002466 View Revisions
2012-05-16 20:12 douggie_m Note Edited: 0002466 View Revisions
2012-05-16 20:14 Ivan Note Added: 0002467
2012-05-16 20:21 douggie_m Note Added: 0002468
2012-05-16 20:30 douggie_m Note Added: 0002469
2012-05-16 20:36 douggie_m Note Added: 0002470
2012-05-16 20:38 douggie_m File Added: Screenshot - 05162012 - 04:36:22 PM.png
2012-05-16 20:53 douggie_m Note Edited: 0002470 View Revisions
2012-05-16 21:17 douggie_m Note Added: 0002471
2012-05-16 21:18 douggie_m File Added: endianless_patch.patch
2012-05-16 21:29 douggie_m Note Edited: 0002471 View Revisions
2012-05-16 21:29 douggie_m File Added: endianless_patch_corrected.patch
2012-05-16 21:51 douggie_m File Added: Screenshot - 05162012 - 05:49:19 PM.png
2012-05-16 21:52 douggie_m Note Edited: 0002471 View Revisions
2012-05-16 21:56 douggie_m Note Added: 0002472
2012-05-16 22:20 douggie_m Note Added: 0002473
2012-05-16 22:34 douggie_m Note Edited: 0002473 View Revisions
2012-05-16 22:39 douggie_m Note Edited: 0002473 View Revisions
2012-05-16 22:47 douggie_m Note Deleted: 0002472
2012-05-16 23:01 douggie_m Note Edited: 0002473 View Revisions
2012-05-17 10:48 Ivan Note Added: 0002474
2012-05-17 19:08 douggie_m Note Added: 0002478
2012-05-17 19:36 douggie_m Note Edited: 0002478 View Revisions
2012-05-17 19:38 douggie_m File Added: Screenshot - 05172012 - 03:35:32 PM.png
2012-05-17 19:39 douggie_m Note Edited: 0002478 View Revisions
2012-05-17 19:42 douggie_m Note Edited: 0002478 View Revisions
2012-05-17 20:22 douggie_m Note Added: 0002479
2012-05-17 20:50 Ivan Note Added: 0002480
2012-05-17 21:19 douggie_m Note Added: 0002481
2012-05-17 21:19 douggie_m Note Edited: 0002473 View Revisions
2012-05-17 21:35 Ivan Note Added: 0002482
2012-05-17 21:52 douggie_m Note Added: 0002483
2012-05-17 21:57 douggie_m Note Added: 0002484
2012-05-17 22:00 douggie_m Note Edited: 0002484 View Revisions
2012-05-17 22:48 Ivan File Added: endian-minimap.patch
2012-05-17 22:48 Ivan Note Added: 0002485
2012-05-18 08:51 douggie_m Note Edited: 0002478 View Revisions
2012-05-18 09:03 douggie_m Note Added: 0002486
2012-05-18 09:05 douggie_m Note Edited: 0002486 View Revisions
2012-05-18 09:16 douggie_m Note Added: 0002487
2012-05-18 09:17 douggie_m File Added: Screenshot - 05182012 - 05:15:18 AM.png
2012-05-18 09:26 douggie_m Note Edited: 0002487 View Revisions
2012-05-18 09:27 douggie_m Note Edited: 0002487 View Revisions
2012-05-18 09:51 douggie_m Note Deleted: 0002487
2012-05-18 10:15 douggie_m Note Added: 0002488
2012-05-18 10:29 Ivan Note Added: 0002489
2012-05-18 10:55 Ivan Note Added: 0002490
2012-05-18 11:13 douggie_m Note Added: 0002491
2012-05-18 11:23 douggie_m Note Edited: 0002491 View Revisions
2012-05-18 17:37 Ivan Note Added: 0002493
2012-05-18 17:37 Ivan Status assigned => resolved
2012-05-18 17:37 Ivan Fixed in Version => 0.89
2012-05-18 17:37 Ivan Resolution open => fixed
2012-05-21 16:29 douggie_m Note Added: 0002515
2012-05-21 16:33 douggie_m File Added: Screenshot - 05212012 - 12:30:10 PM.png
2012-05-22 17:06 douggie_m Note Edited: 0002515 View Revisions
2012-05-22 17:07 douggie_m Note Added: 0002522
2012-05-22 17:07 douggie_m Status resolved => feedback
2012-05-22 17:07 douggie_m Resolution fixed => reopened
2012-05-22 17:09 douggie_m File Added: Screenshot - 05222012 - 01:02:36 PM.png
2012-05-22 17:26 Ivan Note Added: 0002525
2012-05-22 17:42 douggie_m Note Added: 0002526
2012-05-22 17:42 douggie_m Status feedback => assigned
2012-05-22 17:43 douggie_m Note Edited: 0002526 View Revisions
2012-05-25 11:58 Ivan Note Added: 0002550
2012-05-25 12:57 majaczek Note Added: 0002552
2012-05-25 19:11 douggie_m File Added: Screenshot - 05252012 - 03:03:15 PM.png
2012-05-25 19:11 douggie_m Note Added: 0002560
2012-05-25 19:44 Ivan Note Added: 0002561
2012-05-25 19:44 Ivan Status assigned => resolved
2012-05-25 19:44 Ivan Resolution reopened => fixed
2012-05-25 19:47 douggie_m Note Added: 0002562
2014-05-30 17:41 beegee Status resolved => closed

Site | Forums | Wiki | Slack | GitHub


Copyright © 2000 - 2024 MantisBT Team
Hosting provided by DigitalOcean
